Shimano Di2 Triathlon Bike Upgrade Kit for Cervelo P-Series Race

• Posted on 16 February 2025
• By Antonio Gonzalez
• Posted in bicycle repair, bicycle tech
• 0

The Shimano Di2 triathlon upgrade kit converts the Cervelo P-Series 105 Race to complete electronic shifting with four shift positions.

This post introduces our comprehensive Shimano 12-speed Di2 triathlon upgrade kit - a popular modification that transforms Shimano 12-speed mechanical shifting triathlon bikes into Shimano's Di2 system with shift positions on both the aerobars and basebar. We're demonstrating this installation on a 2025 Cervelo P-Series 105 Race, but the kit is compatible with any 12-speed triathlon bike equipped with Riderever hydraulic brakes.

For non-Cervelo bikes or those without Riderever brakes, the kit remains fully compatible - you simply won't use the shift button covers and Cervelo-specific battery sleeve components.

While the installation requires common shop tools that some triathletes may have on hand, we strongly recommend having the upgrade kit installed by a professional mechanic at your local bike shop.

We have this kit available in a Shimano 105 (R7150) version for $1,400 or an Ultegra (R8150) version for $1,625. The only difference between the 105 and Ultegra versions is the derailleurs.

COMPONENT LIST

The 20-part kit used in this post includes the following parts:

- Shimano FD-R7150 (105) or FD-R8150 (Ultegra) Di2 12-Spd Front Derailleur (x1)

- Shimano RD-R7150 (105) or RD-R8150 (Ultegra) Di2 12-Spd Rear Derailleur (x1)

- Shimano R9160 Dura-Ace Di2 Bar End Shifter (x1 set)

- Shimano BT-DN300 Di2 Internal Battery (x1)

- Shimano EW-EC300 Charging Cable (x1)

- Shimano SW-R9150 Di2 "Climber" Shifter Set (x1 set)

- Shimano EW-JC200 2-Port Junction (x2)

- Shimano EW-AD305 Di2 Adaptor: SD50 to SD300 (x1)

- Shimano SM-JC41 E-Tube Di2 Internal Junction Box (x1)

- Shimano EW-SD50 Di2 E Tubes (x3)

- Shimano EW-JC130 Y-Split Rooting (x1)

- Shimano EW-SD300 Electric Wires, various lengths (x3)

- Riderever Trivia Di2 Shift Button Cover (x2)

- Cervelo P-Series Seatpost Internal Battery Mount (x1)

BENCH REVIEW

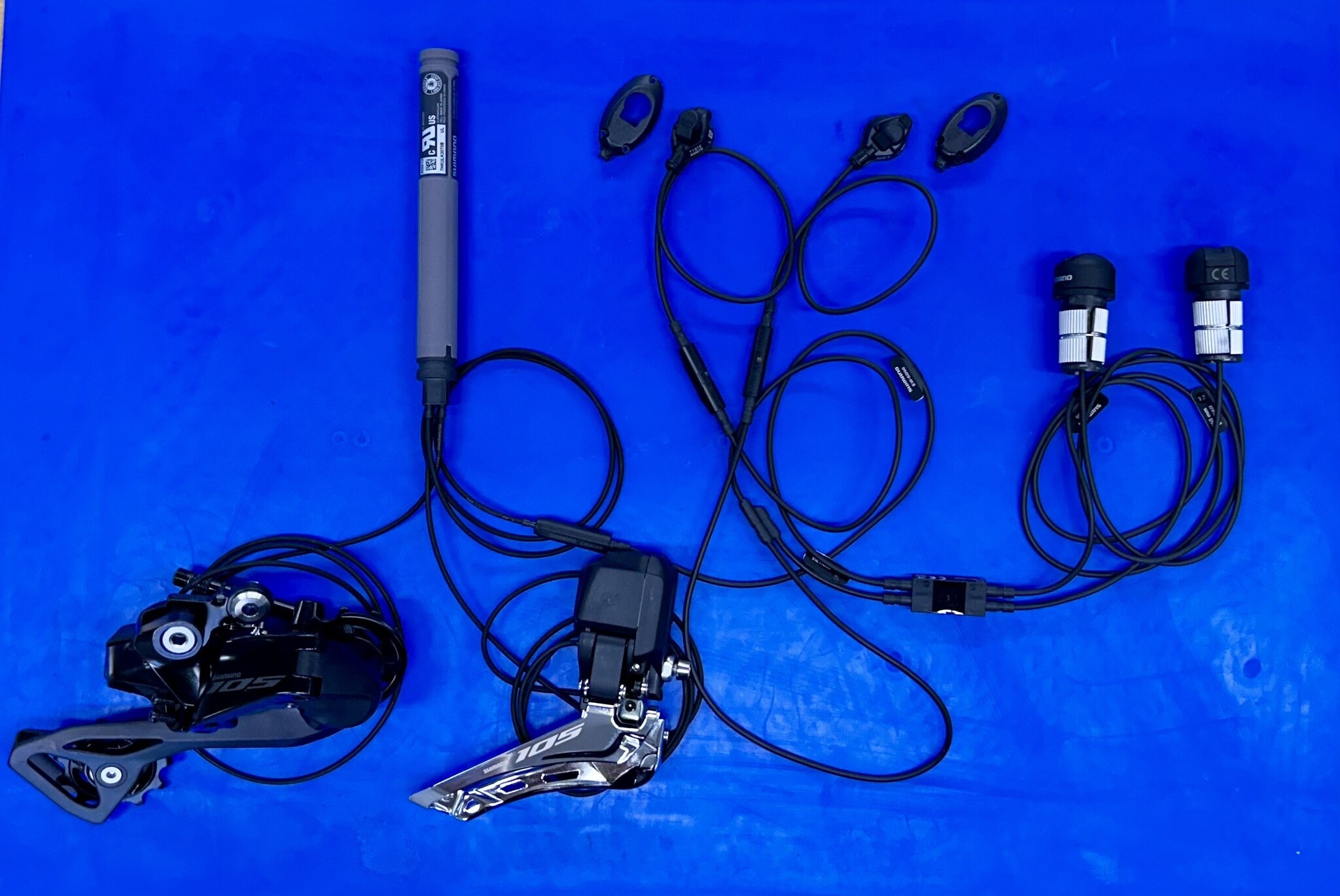

We bench-test every system and bring all components up to the current firmware on the Shimano eTube project before installation- it's much easier to inspect parts now, before they're installed. All the configured parts (minus the seatpost battery sleeve) are shown below.

(2/19/25, editor note: post in progress)
